NT Series aims to deliver a high performance solution while cutting down long set up times. This series couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms, production companies, and system integrators.

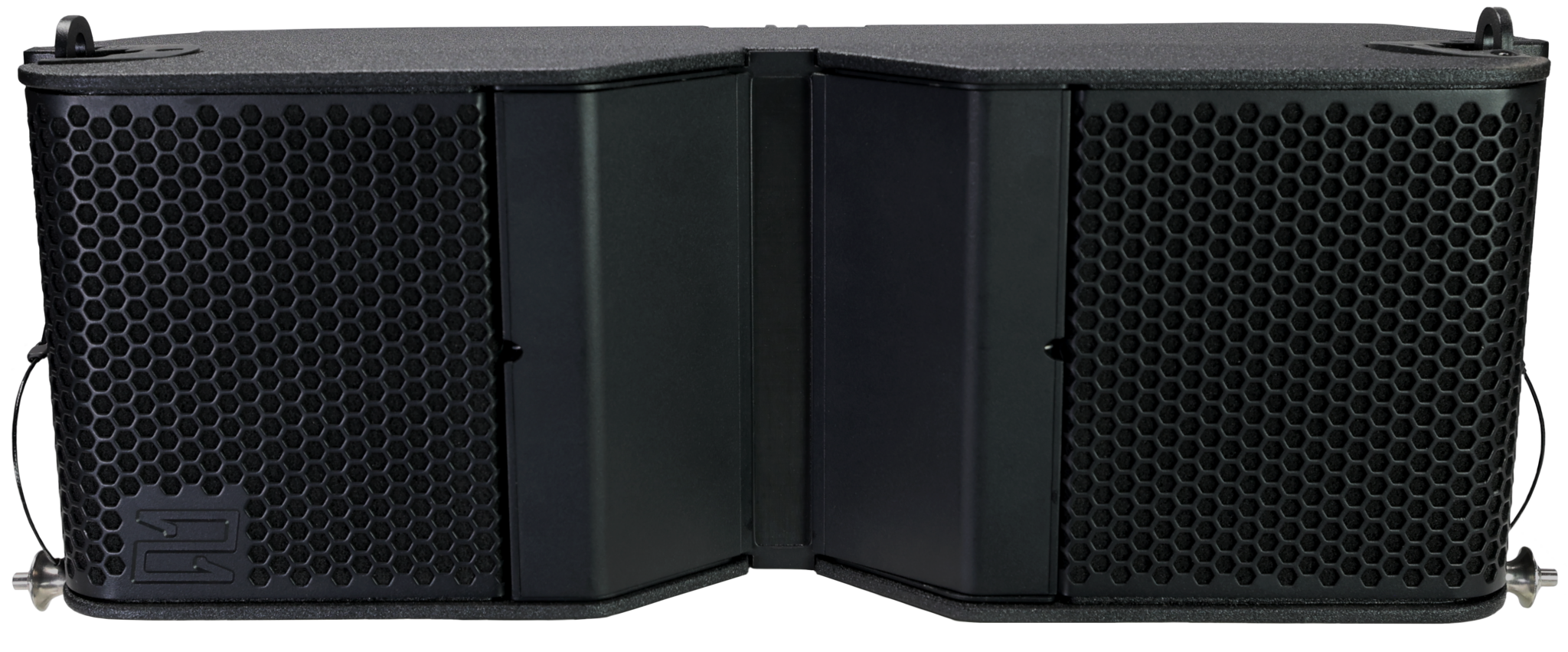

NT206L is a compact, active line array loudspeaker. It features a new patented EAW waveguide in concert with a NEW EAW Core Technology called AHD (Adjustable Horizontal Directivity). AHD brings field adjustable horn flairs to the design, offering toolless adjustment of horizontal directivity. NT206L plays loud (139dB) and low (65-20kHz), all in a premium baltic birch, steel, and aluminum enclosure that weighs less (31.7lb / 14.4kg) than most passive, plastic enclosures in its class. Designed for rapid deployment, NT206L features familiar analog inputs and controls and has a complete assortment of compatible accessories for transport, mounting, and rigging.
Designed to serve production companies, system integrators, and venues looking for high-quality sound and versatile deployment in environments such as small to medium outdoor festivals, corporate events, houses of worship, performing arts centers, theaters and everything in between.

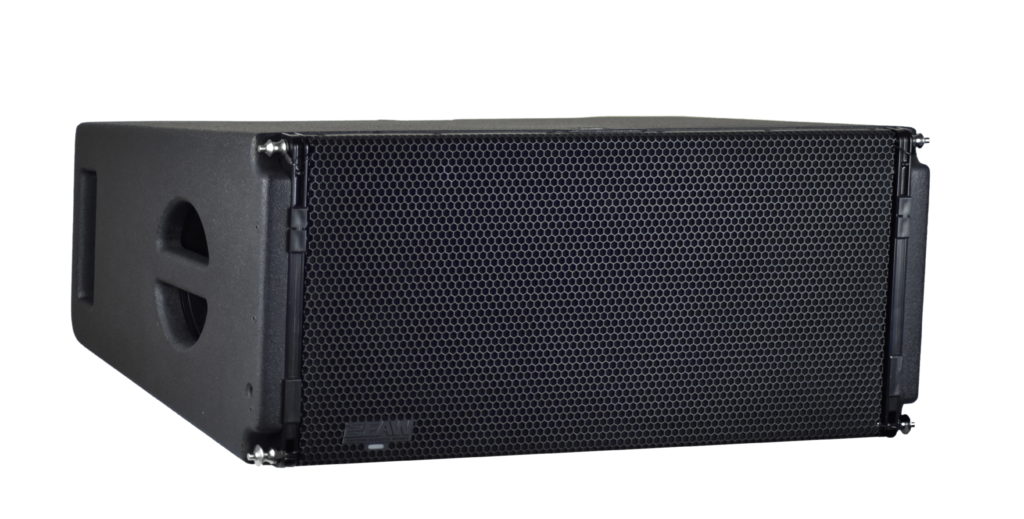

NTX210L offers large format performance in a compact and efficient to deploy system helping designers satisfy demanding clients. Each array module wirelessly communicates with modules above and below. This greatly reduces setup, tuning time, and opportunities for errors while maximizing the array’s performance.
NTX210L and accessories are designed to support medium to large outdoor festivals, corporate events, houses of worship, performing arts centers, and theaters.
EAW’s proprietary Resolution 2 modeling software allows you to accurately predict performance and optimize multiple arrays.
Every EAW product series works seamlessly with our array of software applications designed to make installation easier and sound optimization a more exact science.
EAW Resolution 2, for example, is a powerful and easy-to-use simulation software that accurately predicts the performance of multiple arrays within a venue. Driven by EAW’s proprietary F-Chart acoustics modeling software, Resolution is more accurate and powerful than previous generations of software by utilizing measured 3D acoustic data.
Output levels are displayed by varying color using a variety of methods, including 1/3-octave and broadband SPL, A and C weighted. The actual frequency response at any point in a venue can also be viewed. User-defined environmental conditions, specifically temperature and humidity, are factored into these calculations.
LF 2×6.5″ cone, 2″ VC Vented
HF 1×1″ exit, 1.75″ VC compression Driver (Adjustable Horizontal Directivity (AHD) Horn Loaded with Isophasic waveguide)
LF 2×10″ cone, 2.5″ VC Vented
HF 1×1.4″ exit, 3″ VC compression drivers Isophasic Wave Guide
