MK5364i

PASSIVE 2-WAY FULL-RANGE LOUDSPEAKER

The MK5300i Series of 2-way, high output, trapezoidal loudspeaker systems are designed as main PA elements for smaller venues, including small houses of worship and auditoriums/theaters, corporate A/V systems, hotel ballrooms and meeting rooms. The Series is also excellent for distributed or fill purposes in larger venues, including large houses of worship and auditoriums/theaters, arenas, stadiums, nightclubs, and themed-entertainment complexes

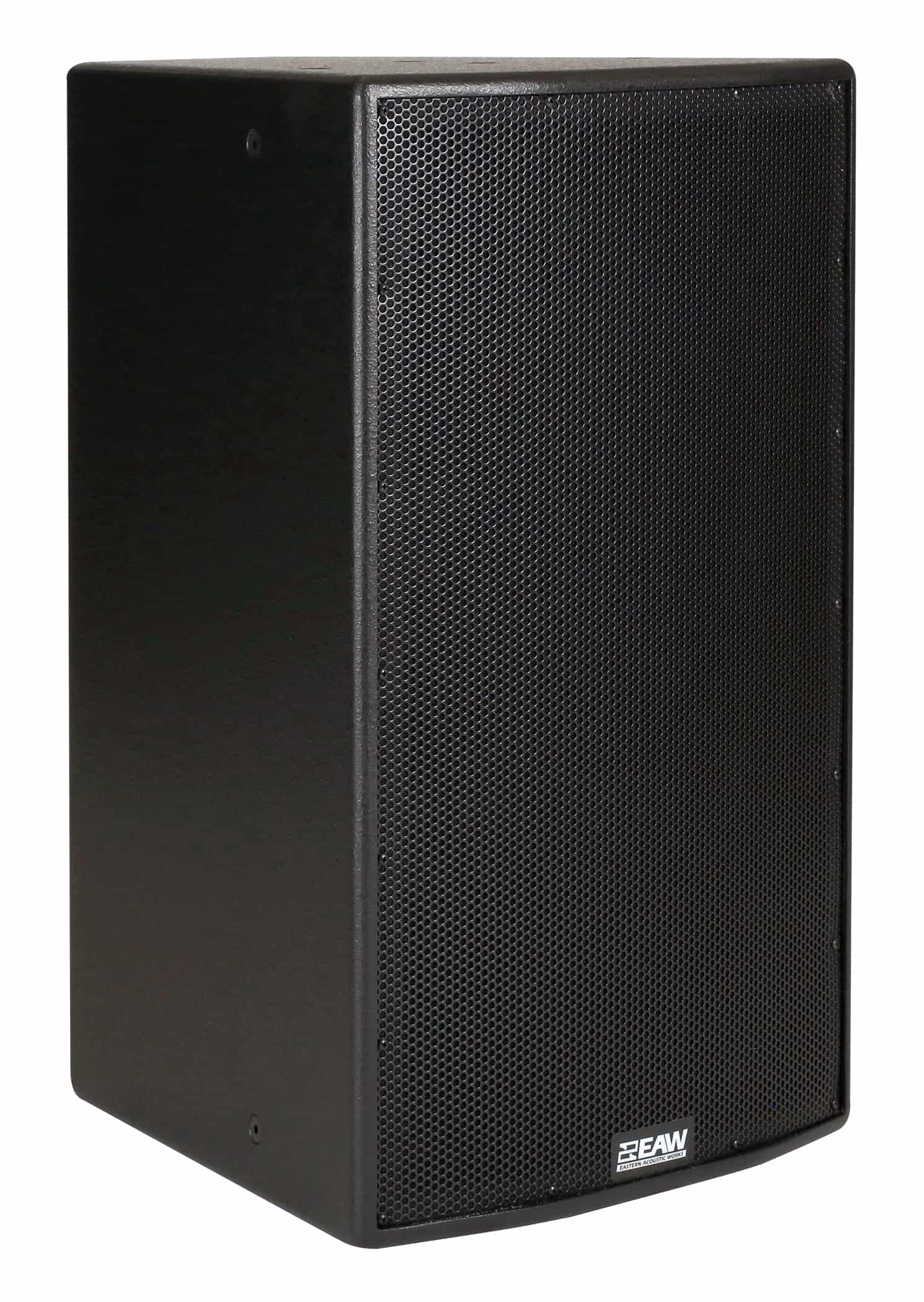

MK5xxxi_iso
Core Technologies
FOCUSING
BEAMWIDTH MATCHED CROSSOVERS
Design + Build

Product Description

To meet the design goals for the intended applications, EAW engineers developed a new, high performance, 3-inch voice coil, 1.4-in exit compression driver, loading it with a selection of six different HF horns with coverage patterns ranging from 60° x 45° to 120° x 60°. The horns are as large as the enclosure size allows to maintain consistent directivity throughout the HF passband. A 3-inch voice coil, 15-inch LF driver was used to complement the sonic character and output of the HF driver. All MK5300i models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The result is clean, high-fidelity output at significantly higher levels than would be expected from loudspeakers of this size and price.
Users can select between single-amp and bi-amp (external processor) operating modes. In either operating mode, EAW’s beamwidth-matching crossover/ filter design delivers even power response throughout the crossover region, eliminating the discontinuities that plague other two-way loudspeakers.

The MK5300i Series systems are the larger companions to the MK2300i Series systems. Enclosures for both series are the same height, facilitating installation where more than one horn pattern and/or type of loudspeaker capability is needed. In addition, SBK Series subwoofers also share this height, creating attractive arrays that use EAW’s preconfigured accessory flybar.

The Details Matter

Specifications

Frequency Response
48Hz – 17KHz
Max SPL
Operating Mode

Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
External Signal Processing: High pass filter; DSP w/2-way filters

Subsystem

LF – 1x 15 in. cone
HF – 1x 1.4 in. exit, 3 in. voice coil compression driver

Nominal Beamwidth
Horizontal: 60
Vertical: 45
Power Handling

Full Range: 800W @ 8ohms
LF: 800W @ 8ohms
HF: 150W @ 8ohms

Connections

Barrier Strip

Dimensions

Height: 30 in (762 mm)
Width: 18.71 in (475.2 mm)
Depth: 19.73 in (501.1 mm)

Weight

77 lbs (34.9 kg)

Training / Instruction

Videos

Add-on Options

Accessories

Eye Bolt 0.375-16 X 1.25 in, EB3825 104001
U-Bracket MK2(5)000 Black, UBKT2353 0007869
U-Bracket MK2(5)000 White, UBKT2353 0015076
Flybar SBK-MK53 VFS-VFR159 Black, 2038320
