MKC50

EAW’s MKC 2-way coaxial point source loudspeakers are flexible tools that help sound system designers provide exceptional sound in small and medium sized spaces.

Core Technologies
DynO
SYMMETRY OF SOURCES
FOCUSING
BEAMWIDTH MATCHED CROSSOVERS
Design + Build

Product Description

Approaching installs from a new angle

With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.

Key Selling Points

  • Highly Versatile, compact coaxial loudspeaker
  • 1 in Dome tweeter provides superior dispersion, fidelity and output
  • Flexible accessory solutions for wall, ceiling or pole mount applications
  • Weather protection and transformer options
  • Companion UXA4401 amplifiers
The Details Matter

Specifications

Frequency Response
80Hz-20kHz
Max SPL
121dB
Operating Mode

Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Subsystem

LF Transducer – 1×5.25in cone, 1.25in VC, Vented
HF Transducer – 1x1in dome tweeter, coaxial

Nominal Beamwidth
110 degrees conical
Power Handling

150W @ 8ohms

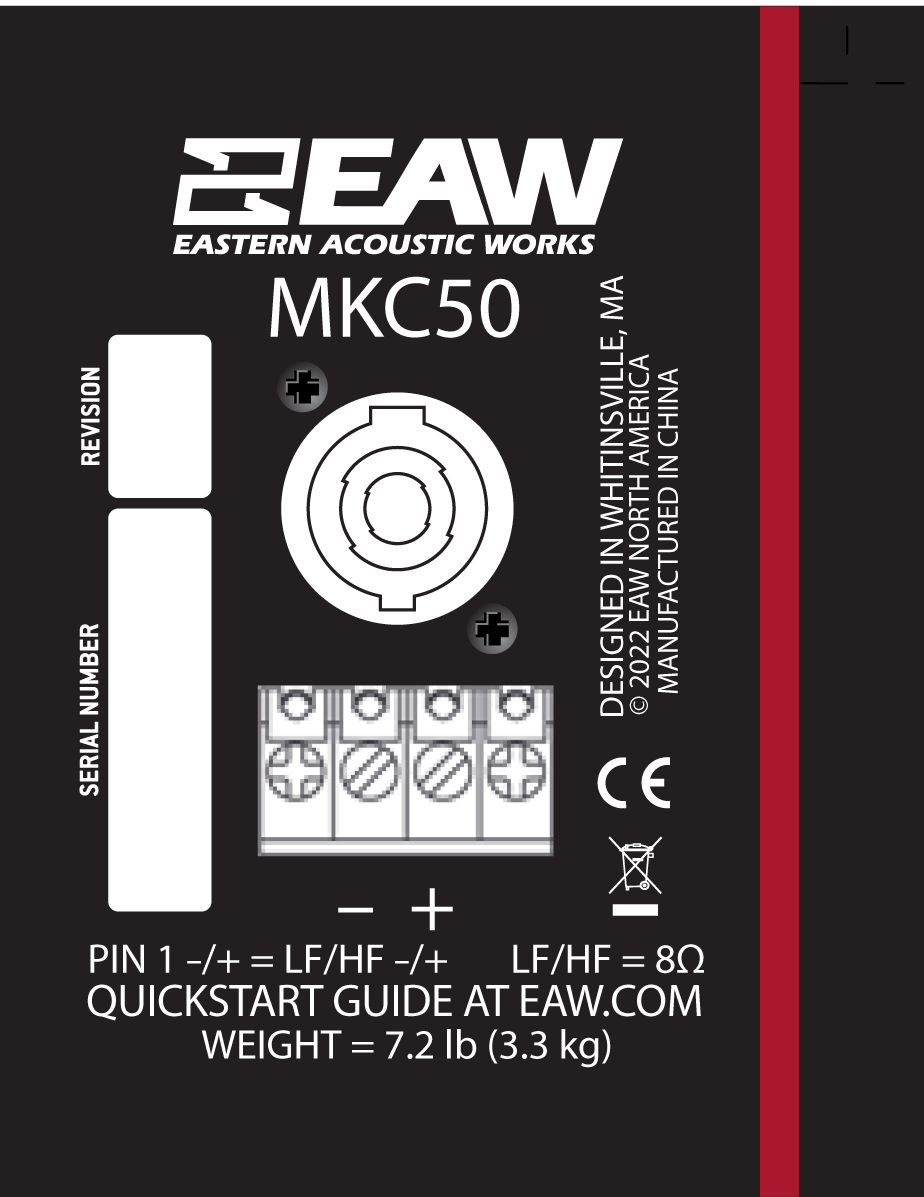

Connections

1x Neutrik NL4, 2-pin barrier strip

Dimensions

9.3 x 6.5 x 5.6in (235 x 165 x 141mm)

Weight

7.2 lbs (3.3kg)

Training / Instruction

Videos

Add-on Options

Accessories

(Sold with) Pan & Tilt Bracket
Ceiling Bracket

Find the Right Speaker

Series Range

Subsystem

LF Transducer – 1×6.5in cone, 1.5in VC, Vented
HF Transducer – 1x1in dome tweeter, coaxial

Nominal Beamwidth

110 degrees conical

Frequency

70Hz-20kHz

Max SPL

125dB

Subsystem

LF Transducer – 1x8in cone, 2in VC, Vented
HF Transducer – 1×1-in exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded

Nominal Beamwidth

90 x 60 degrees, rotatable

Frequency

60Hz-20kHz

Max SPL

132dB

Subsystem

LF Transducer – 1×12″ cone, 2.5″ VC, Vented
HF Transducer – 1×1-in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded

Nominal Beamwidth

90 x 60 degrees, rotatable

Frequency

48Hz-20kHz

Max SPL

135dB
