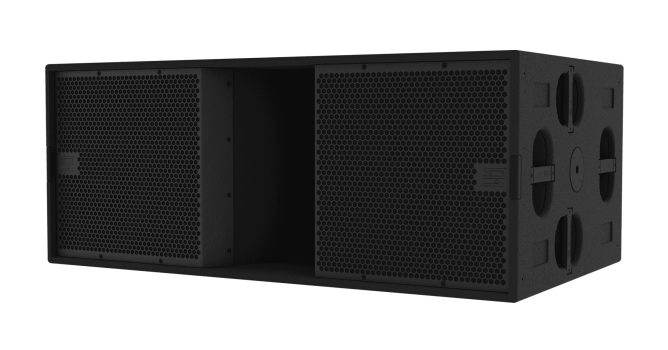

NT219S

NT219S is the definitive low-frequency foundation for large-scale production. Combining dual high-excursion 19” drivers with 8000W of onboard power, it delivers a massive 142dB Max SPL and low frequency extension to 25 Hz. Engineered for maximum VLF energy and impact, NT219S provides the headroom and acoustic weight necessary to anchor high-stakes touring and arena-scale sound.

The Details Matter

Specifications

Frequency Response
25Hz–125 Hz
Max SPL
142 dB
Operating Mode

Single Amp VLF DSP w/EAW DynO™

Subsystem

2×19″ cone,
4″ VC Vented

Nominal Beamwidth
Power Handling

8000W Integrated Class-D Amplification

Connections

Neutrik PowerCON TRUE1 TOP

Dimensions

(H × W × D) 21.3x 52.8 x 31.5 in

Weight

215 lbs. (98 kg)

Training / Instruction

Videos

Add-on Options

Accessories

NT219S|CART (2-SPEAKERS) 2071082-90
NT219S|COVER (2-SPEAKERS) 2071298
NT219S|FACE PALLET (1-SPEAKER) 2073111-90
NT219S|COVER (1-SPEAKER) 2072417
NT SUB RAIN HOOD 2073130-90
NT219S|FLYBAR 2073159-90
NT219S|RIGGING KIT 2073157-90

Find the Right Speaker

Series Range

Powered 10" Line Array

Subsystem

LF 2×10″ cone, 2.5″ VC Vented
HF 1×1.4″ exit, 3″ VC compression drivers Isophasic Wave Guide

Nominal Beamwidth

Horizontal: 90°
Vertical: 12°

Frequency

55HZ–18kHz

Max SPL

140 dB

2-Way Active 6" Line Array

Subsystem

LF 2×6.5″ cone, 2″ VC Vented
HF 1×1″ exit, 1.75″ VC compression Driver (AHD)

Nominal Beamwidth

Horizontal: Narrow 80°
Wide: 110°
Asymmetric: 95° left or right
Vertical: 10°

Frequency

65Hz-20kHz

Max SPL

139dB

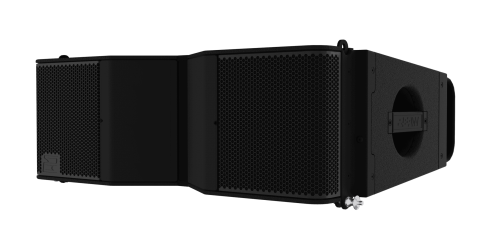

2-Way Active 8" Line Array

Subsystem

LF 2x 8” woofers w/2.5” VC Vented
HF 1 x 1.4-in exit, 3-in voice coil Compression Driver

Nominal Beamwidth

Horizontal: Narrow 80°
Wide: 110°
Asymmetric: 95° left or right
Vertical: 10°

Frequency

50Hz-20kHz

Max SPL

141dB

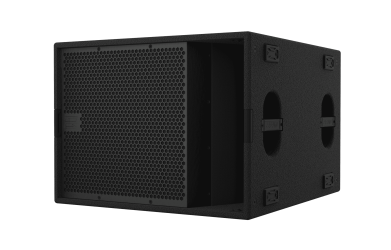

Subsystem

1×19″ cone
4″ VC Vented

Nominal Beamwidth

Frequency

25Hz–125 Hz

Max SPL

136 dB

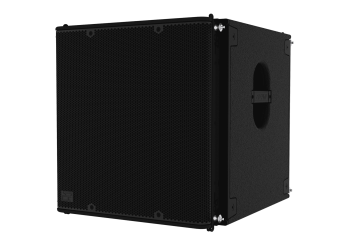

16" Powered Subwoofer

Subsystem

1×16″ cone, 4″ VC Vented

Nominal Beamwidth

NA

Frequency

25Hz – 125Hz

Max SPL

135dB
