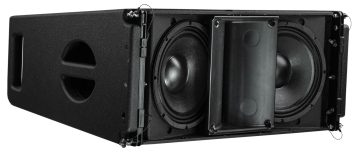

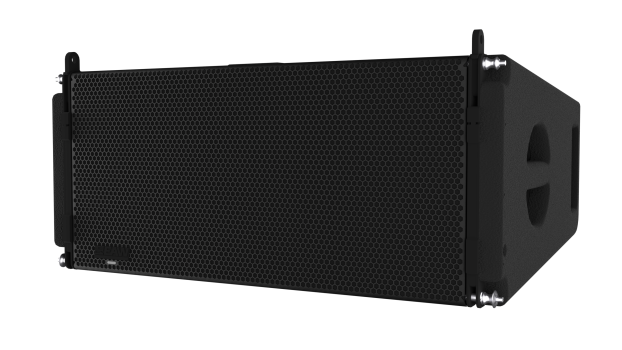

NTX210L is a dual 10-inch active line array that brings intelligent optimization to the Newport line. Achieving 140dB Max SPL with extension to 55Hz, it delivers the low-mid punch and presence typically reserved for much heavier dual 12-inch systems. Featuring EAW’s OptiLogic technology for automated array optimization along with a precision 90-degree horn, it simplifies complex deployments for high-capacity installations.
Bi-amp LF,HF
LF 2×10″ cone, 2.5″ VC Vented
HF 1×1.4″ exit, 3″ VC compression drivers Isophasic Wave Guide
LF:1200W
HF:400W
AC Mains: Neutrik PowerCON TRUE1 TOP
Ethernet/Dante
XLR/Analog
Height: 12.3in (314mm)
Width: 28.3in (720mm)
Depth: 20.5in (520mm)
64Ibs
NTX210L Spec Sheet
SBX118F Spec Sheet
SBX218 Spec Sheet
NTX Series User Manual
Newport Series Application Guide
NTX210L Drawings
SBX118F Drawings
NTX210L Revit Files
KF & NTX Series Revit Files
EAW Sketch Up Files
Online Array Assistant (OAA)
UK Declaration of Conformity
EU Declaration of Conformity
NTX210L|Flybar – 2071074-90
NTX210L|Cart – 2071075-90
NTX210L|Cart Lid – 2071076-90
NTX210L|Cover – 2071300
NTX|Rainshield – 2070971
LF 2×6.5″ cone, 2″ VC Vented
HF 1×1″ exit, 1.75″ VC compression Driver (AHD)
LF 2x 8” woofers w/2.5” VC Vented
HF 1 x 1.4-in exit, 3-in voice coil Compression Driver
1×19″ cone
4″ VC Vented
2×19″ cone,
4″ VC Vented
1×16″ cone, 4″ VC Vented
